OEE PLC Integration & Production Signal Architecture
Engineering-Grade OEE Monitoring for PLC-Controlled Equipment
OEE Fails When Signal Integrity Fails
Most OEE implementations fail at the signal layer.
- Inaccurate production counts
- Poor electrical isolation
- Incorrect machine state logic
- Unvalidated scrap signals
If the inputs are wrong, the OEE calculation is meaningless.
Embry engineers the signal path first.
Dedicated Sensors vs. PLC Signal Extraction
In many facilities, installing one or two dedicated production sensors is the most robust and lowest-risk implementation strategy.
Advantages:
- No PLC code modification
- No impact to machine sequencing
- Independent validation path
- Simplified troubleshooting
Where PLC signal extraction is appropriate, signal buffering and electrical isolation are implemented to protect both systems.
The objective is deterministic, verifiable data — not convenience.
Electrical Design & Signal Integrity
Embry treats OEE inputs as control-grade signals. Integration includes:
- Voltage compatibility verification
- Electrical isolation between systems
- Noise mitigation
- Proper terminal and fuse protection

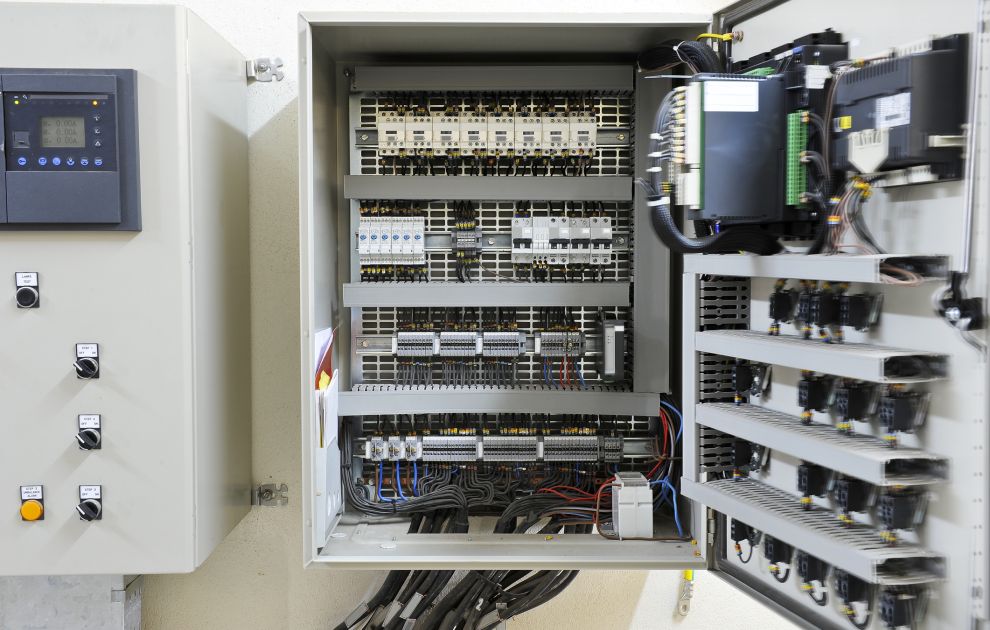

- Clean routing within the control panel
Signals are validated under live production load. Measured output is reconciled against physical production totals. Data integrity is confirmed before commissioning is complete.
Encoder-Based Measurement for Continuous Processes
For extrusion, web handling, roll forming, and other continuous processes, piece counts alone are insufficient. Encoder integration enables:
- Linear production measurement
- Target rate comparison
- Throughput deviation tracking
Performance loss becomes quantifiable against actual output.
Machine State Definition & Downtime Logic
Accurate OEE requires explicit machine state logic:
- Run
- Idle
- Planned stop
- Unplanned stop
Downtime categorization must reflect actual machine behavior.
Embry configures logic based on:
- Control architecture
- Operator workflow
- Maintenance structure
Generic templates are not used.
Logic reflects real operating conditions.
Encoder-Based Measurement for Continuous Processes
For extrusion, web handling, roll forming, and other continuous processes, piece counts alone are insufficient. Encoder integration enables:
- Linear production measurement
- Target rate comparison
- Throughput deviation tracking
Performance loss becomes quantifiable against actual output.
Commissioning & Validation Process
Prior to go-live, Embry performs structured validation:
- Production count reconciliation
- Scrap signal verification
- Run/stop transition testing
- Downtime event confirmation
- Operator interface validation
The system is not considered complete until measured data matches physical production output.
When OEE Data Transitions to Engineering Action
Properly implemented OEE should expose:
- Repeated short-duration stops
- Intermittent nuisance faults
- Throughput degradation under load
- Scrap correlated to process variables
At that point, monitoring transitions to engineering intervention. Embry can:
- Modify PLC logic
- Optimize sequencing
- Adjust motion control parameters
- Upgrade drives or feedback devices
- Redesign control strategies
Data identifies loss. Engineering removes it.
Engineering-Driven OEE Integration
Embry Automation & Controls is an industrial automation integrator.
We design control panels.
We program PLCs.
We execute retrofits.
We support systems 24/7.
OEE is not a dashboard add-on. It is integrated into your automation architecture.
